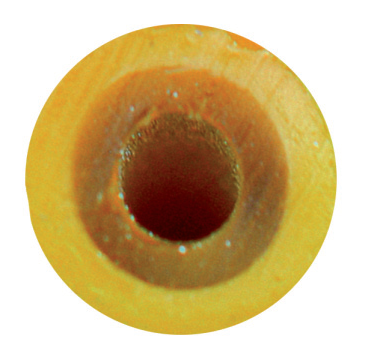

Ideal Detonators Pvt. Ltd., manufacturers and suppliers offers the Non Electric Initiating Product with brand name SRIDET-I which combines the versatility and advantages of Electric detonators and detonating fuse.SRIDET-I basically consists of a Shock Tube of 2 layers having very small quantity of explosive material, HMX on its inner annular surface crimped with a Delay Detonator. The Delay Detonator shell consists of Primary Explosive Lead Azide with Aluminum powder and secondary explosive charge as PETN and a single pyrotech delay or multiple pyrotech elements depending on delay time range. Charge of Primary and secondary explosives quantity makes detonator No. 8 strength. The Shock Tube has high tensile strength and resistance to elongation.When the shock tube initiated a low order shock wave with a velocity of 2000±2000, meters /second passes through the shock tube and initiates the detonator. The shock wave do
Shell material | ALUMINUM | |
---|---|---|
Shell length(mm) | 62-68 mm | |
Shell outside diameter(mm) | ||
Shock tube length(m) | 1.2 M to 30.0 M (on demand of Users) | |
Kinds of shock tube | Common Type and High strength Type | |
Water proof | Water depth(m) | 20 |
Time(h) | 8 | |
Anti tensile Force | Common type | The shock tube and the detonator shall not be disjointed each other when applying 49N tensile force for 1 minutes |
High strength type | The shock tube and the detonator shall not be disjointed each other when applying 98N tensile force for 1 minutes | |
Power | The diameter of the exploded hole in 5mm- thick led plate
shall be larger than the outside diameter of the detonator. |
|
Period and delay time |
Take care in handling, prohibit being impacted violently, away from fire source and high temperature objects and should not be exposed to sunshine and rain. Winding and folding are forbidden during using. Detonator should be tied tightly with shock tube when exploding by single detonator.
