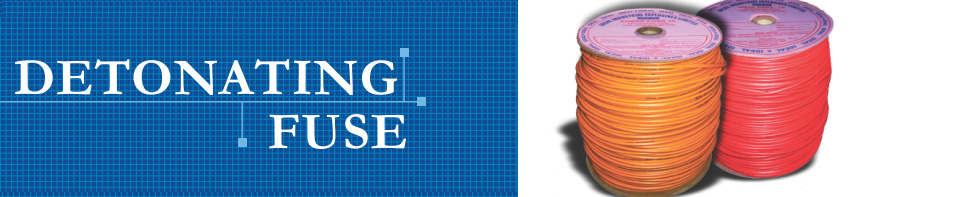

Detonating Fuse

A detonating cord is used for firing operations/blasting operations but unlike the normal cord which has black powder in it, the detonating fuse has a highly explosive PETN as a core and the PETN is enclosed with many coverings which Is finally covered with a PVC coating which helps the chord from getting any external effects on it. Like PETN, the detonating fuse is triggered by shock or friction. It is mostly used for open blasting and cap-sensitive explosives. The Detonating Fuse is available in 6.0 grams/meter, 7.5 grams/meter and 10 grams/meter varieties.


Detonating Fuse is a flexible cord containing a uniform core load of PETN that ensures positive initiation of cap-sensitive explosives along the entire length of the fuse. This high explosives core is protected to with-stand physical abuses and exposure to extreme temperatures. Detonating fuse is relatively insensitive to detonation by friction, shock or electric discharge and requires a proper initiation for detonation.


Product Specifications :

Nominal diameter : 4.65mm
Approx. cord weight per meter : 25.0gms
PETN Core Load : 10.0 ± 0.2 gms
Ave. Velocity of Detonation : 6500 ± 250 mtr/sec
Initiation by : No.8 det
Cord Colour : Red & Golden Yellow
Tensile Strength : 60 Kgs
Gross Weight : 23 Kgs (Approx
Net Weight : 20 Kgs (Approx
Water resistance : Excellent

Product Name Core Load
(Gms / Mtr.)
Velocity of
Detonation (MTS/SEC)
Packing
MTRS
Power cord-6 6 ± 0.2 6500 ± 250 1000 / 1500 detonating cord - ideal
Power cord-10 10 ± 0.2 6500 ± 250 1000 / 1500
Ideal cord-10 10 ± 0.2 6500 ± 250 1000 / 1500
Ideal cord-7.5 7.5 ± 0.2 6500 ± 250 1000 / 1500

Packing:

Detonating Fuse is wound on reels and packed in Laminated Corrugated Fibre board cases.

Applications:

It can be used in Surface trunk lines, Secondary blasting and Down lines in Small diameter holes. For use in Under water blasting, Long hole blasting, Places of high altitude, near High voltage transmission and all conditions in Mining, Construction and Quarrying. Special applications such as Seismic prospeting, Pre-sclitting and Dimensions tool industry.

Shipping Information:

As per IMDG (International Maritine Dangerous Goods) Classifications
Class:
1, Division: 1.1, Group: D, Un No.: 0065, Page No.: 1251, Storage Category: I

As per PESO (Petroleum and Explosives Safety Organization) Classifications
ID No.: POWER CORD-7.5:
466; IDEAL CORD-10: 467; POWER CORD: 713 , Class: 6, Division: 2, Category: ZZ

Note :


Detonating Fuse with higher core loads (i.e 10grs, 40grs, 80grs/Mtr) will be supplied on customers requirements.
