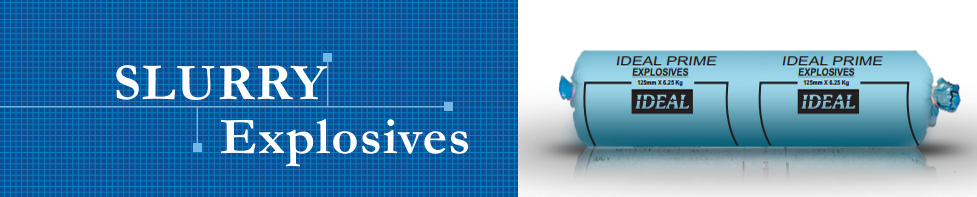

Slurry Explosives



Slurry explosives or water gel constitute of Ammonium nitrate and fuel which are produced in cartridges. These are very much used in open-cast mining. Zambia has one of the largest open pits in Africa for instance, Nkana open pit situated at Nkana mine, Nchanga Mines, and Kansanshi Copper Mine which are one of the biggest producers of copper around Africa.

Slurry Explosive products are great while working on blaster shooting because of its efficiency in cutting the rocks.


Site mixed slurry explosives (SMS) are high performance booster sensitive explosives that all intermediate ingredients are brought to the field pump to sensitize the emulsion and to form explosive when the mixture gets loaded in the bore hole.The Explosive is not in the cartridge form. The components of the explosive are carried in liquid form in different compartments of the pump truck from suppliers plant to the mine. These are specially formulated to match specific blasting requirements and are mainly used in open cast mining.


There are 9 types of Large Diameter Explosives, Namely:

  • Ideal Boost (Cap Sensitive)
  • High Power Ideal Boost (Cap Sensitive)
  • Ideal Super Boost (Cap Sensitive)
  • Ideal Prime (Cap Sensitive)
  • Ideal Supreme prime (Cap Sensitive)
  • Ideal Super Prime (Cap Sensitive)
  • Ideal Gel (Non -Cap-sensitive)
  • Ideal Column (Non -Cap-sensitive)
  • Ideal Super Column (Non -Cap-sensitive)

*The Cap sensitive Explosives in our range of Slurry Explosives act as a primer for the Non-Cap Sensitive Explosive products making them initiate the explosions and our IDEAL Boost Explosives are effective in initiating Non-Cap Sensitive Explosives and used in Removing of toe in Hard-Rock formation.

*Our Ideal Column variant of explosives can act as a column charger in all tye of formations.


LARGE DIA SLURRY EXPLOSIVES

Product Name Type of Explosive Density
(G/CC)
Velocity of
Detonation
(MTS/SEC)
Catridge size
Dia X Norminal
Weight
IDEAL Boost Cap-sensitive,
medium strength
Aluminized
booster charge
1.20-1.25 3900-4200 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs.
ideal_boost
High Power
IDEAL Boost
Cap-sensitive
very high strength
Aluminized
booster charge.
1.20-1.25 4200-4400 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5 kg
Each box Contains
of max. of 25 Kgs
high_power_ideal_boost
IDEAL Super
Boost
Cap-sensitive
high strength
Aluminized
booster charge
1.20-1.25 4000-4300 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs
ideal_super_boost
IDEAL Prime Cap-sensitive
medium strength
Aluminized
prime charge
1.15-1.20 3600-3900 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs
ideal_prime
IDEAL Supreme
Prime
Cap-sensitive,
very high strength
Aluminized
prime charge
1.15-1.20 3800-4100 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs.
ideal_supreme_prime
IDEAL Super
Prime
Cap-sensitive
high strength
Aluminized
prime charge
1.15-1.20 3700-4000 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs
ideal_super_prime
IDEAL Gel Non-cap sensitive,
high strength base
charge
1.15-1.20 3500-3900 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs
ideal gel slurry explosives
IDEAL column Non-cap sensitive
medium strength
column charge
1.15-1.20 3300-3600 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs.
ideal_column
IDEAL Super
Column
Non-cap sensitive
high strength
column charge
1.15-1.20 3400-3800 83mm x 2.78kg
125mm x 6.25kg
200mm x 12.5kg
Each box Contains
of max. of 25 Kgs.
ideal_super_column

Applications:

  • Cap Sensitive explosives are powerful primers for initiating all Non-Cap Sensitive explosives. They act as excellent primers for Ideal Gel slurry explosives / Ideal Super Column / Ideal Column charges in Hard Rock formations. Due to its sticking properties and ease of cutting, it is commonly used for blaster shooting.

  • Ideal Boost Cap sensitive explosives find application in open cast mining and quarrying for Large Diameter Hole Blasting. It acts as an excellent booster for Ideal Gel slurry explosives / Ideal Super Column / Ideal Column, used as bottom charge for removal of toe in Hard Rock formation.

  • Ideal Gel slurry explosives finds application as Base / Column charges, for blasting in rough hard rock formations in over burden and open cast mining,
    construction work and quarrying.

  • Ideal Column also finds application in as Column charges in all types of Formations.


Shipping Information:

As per IMDG (International Maritine Dangerous Goods) Classifications
Class:
1, Division: 1.1, Group: D, Un No.: 0241, Page No.: 1120, Storage Category: II TYPE 'B'

As per PESO (Petroleum and Explosives Safety Organization) Classifications ID No.:
IDEAL BOOST
HIGH POWER IDEAL BOOST
IDEAL SUPER BOOST
IDEAL PRIME
IDEAL SUPREME PRIMEIDEAL
SUPER PRIME
IDEAL GEL
IDEAL COLUMN
IDEAL SUPER COLUMN
-
-
-
-
-
-
-
-
-
100
92
96
105

97
449
101
104
