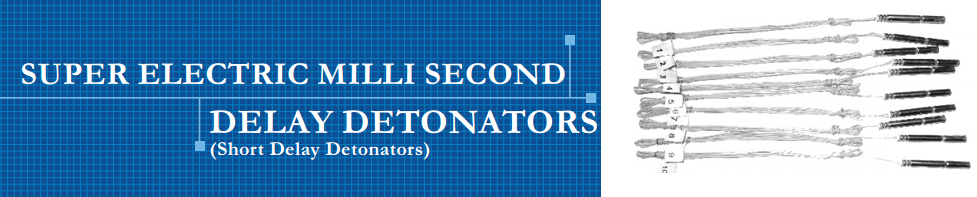

Super Electric Milli Second Delay Detonators

SUPER ELECTRIC MILLI SECOND DELAY DETONATORS (SDD)



Short Delay Detonators have delay numbers ranging from zero to ten (0 - 10) with a nominal time interval of 25 milliseconds between successive delay numbers from 1 - 6, 50 milliseconds for 7 - 8, 75 milliseconds for 9 - 10. Delay numbers 0 - 10 are identified with number tag on the leg wire. Fuse Heads are fitted to the shells. Precise consistency of the unique design of the Fuse Head is maintained by a fully automated process and strict quality control.:

Product Specifications:

Tube Material : ALUMINUM
Tube Length : 62MM & 68MM
Strength : NO. 8
Tube Diameter : 7.2 ± 0.2 mm(O.D)
Lead Wire Material : GI / Copper Wire
Lead Wire Resistance : 0.75 + 0.10 Ohms/Mtr.
Length of Lead Wire : As per Customer Requirement
Nominal Delay Time

Delay No. Nominal Delay time
  1. 1.
  2. 2.
  3. 3.
  4. 4.
  5. 5.
  6. 6.
  7. 7.
  8. 8.
  9. 9.
  10. 10.
  11. 11.
00 ms
25 ms
50 ms
75 ms
100 ms
125 ms
150 ms
200 ms
250 ms
325 ms
400 ms
Fuse Head Characteristics : : (a) Resistance : 1.7 to 2.0 Ohms.
(b) Firing impulse : 3.2 milliwatt secs per Ohm.
(c) Minimum firing : 1.2 amperes DC current.
(d) No fire current : 0.18 amps applied for 300 Seconds.
Gross Weight : 20.00 Kgs (Approx)
Net Weight : 17.00 Kgs (Approx)

Packing:

The Detonators are bound in bundles of 25 each. Such bundles (25Nos.) are Packed in wrapper (parcel) Forty of these parcels (containing totally 1,000 detonators of 3 meters wire) are packed in a Fibre Board case. Depending on the length of leg wire requisite number of packets are packed in fibre case inside with water- proof paper. Case marking provide for indicating wire length, type of wire and delay number. Higher lengths of leg wire are supplied at customers requirement.

Applications:

Short Delay Detonators are designed for use in opencast and underground metal mines, driving tunnels, drifts and shaft sinking and in quarries where multi-shot rounds are required to be fired.


Shipping Information:

As per IMDG (International Maritine Dangerous Goods) Classifications
Class:
1, Division: 1.1, Group: B, Un No.: 0030, Page No.: 1257, Storage Category: II TYPE 'C'

As per PESO (Petroleum and Explosives Safety Organization) Classifications
ID No.:
719 ,Class: 6, Division: 3, Category: ZZ
